B777-F

機体仕様

カーゴドアサイズ

[cm(inch)]

区分 サイズ 幅×高
MAIN 373 x 305 (147 x 120)
FWD 259 x 170 (102 x 67)
AFT 259 x 170 (102 x 67)
BULK 84 x 112 (33 x 44)

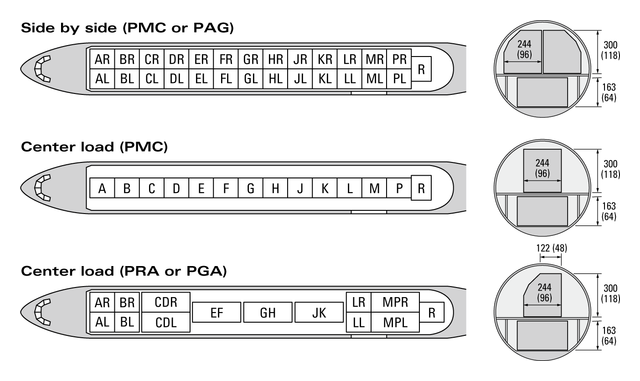

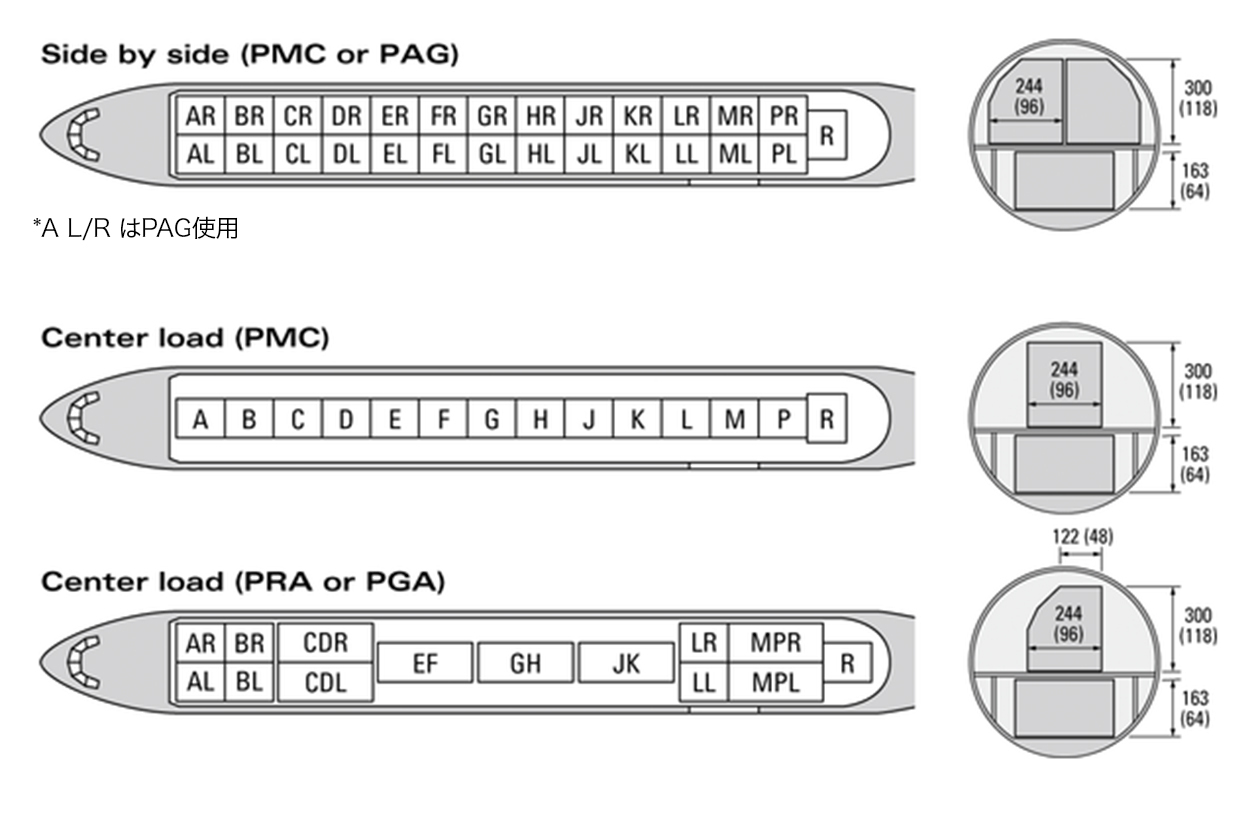

最大搭載ULD台数

Compartment ULD
MAIN 27 Pallets (side by side ver)
FWD 18 Containers / 6 Pallets
AFT 14 Containers / 4 Pallets
TOTAL 32 Containers / 37 Pallets

重量制限

区分 最大搭載重量 最大面荷重
MAIN - 1,464kg/m² (300lbs/ft²)
FWD 30,617kg (67,500lbs) 976kg/m² (200lbs/ft²)
AFT 22,226kg (49,000lbs) 976kg/m² (200lbs/ft²)
BULK 4,082kg (9,000lbs) 732kg/m² (150lbs/ft²)

BULK仕様

バルク室 サイズ

[cm(inch)]

パッケージサイズ表(BULK)

[cm(inch)]

  Width
12
(5)
25
(10)
38
(15)
50
(20)
63
(25)
84
(33.2)
Length
Height 101
(40)
429
(169)
429
(169)
391
(154)
360
(142)
337
(133)
312
(123)
91
(36)
429
(169)
429
(169)
408
(161)
373
(147)
347
(137)
325
(128)
81
(32)
429
(169)
429
(169)
429
(169)
391
(154)
363
(143)
337
(133)
71
(28)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
60
(24)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
50
(20)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
40
(16)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
30
(12)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
20
(8)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
10
(4)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
