B787-8

機体仕様

カーゴドアサイズ

[cm(inch)]

区分 サイズ 幅×高
FWD 269 x 170 (106 x 67)
AFT 269 x 170 (106 x 67)
BULK 102 x 114 (40 x 45)

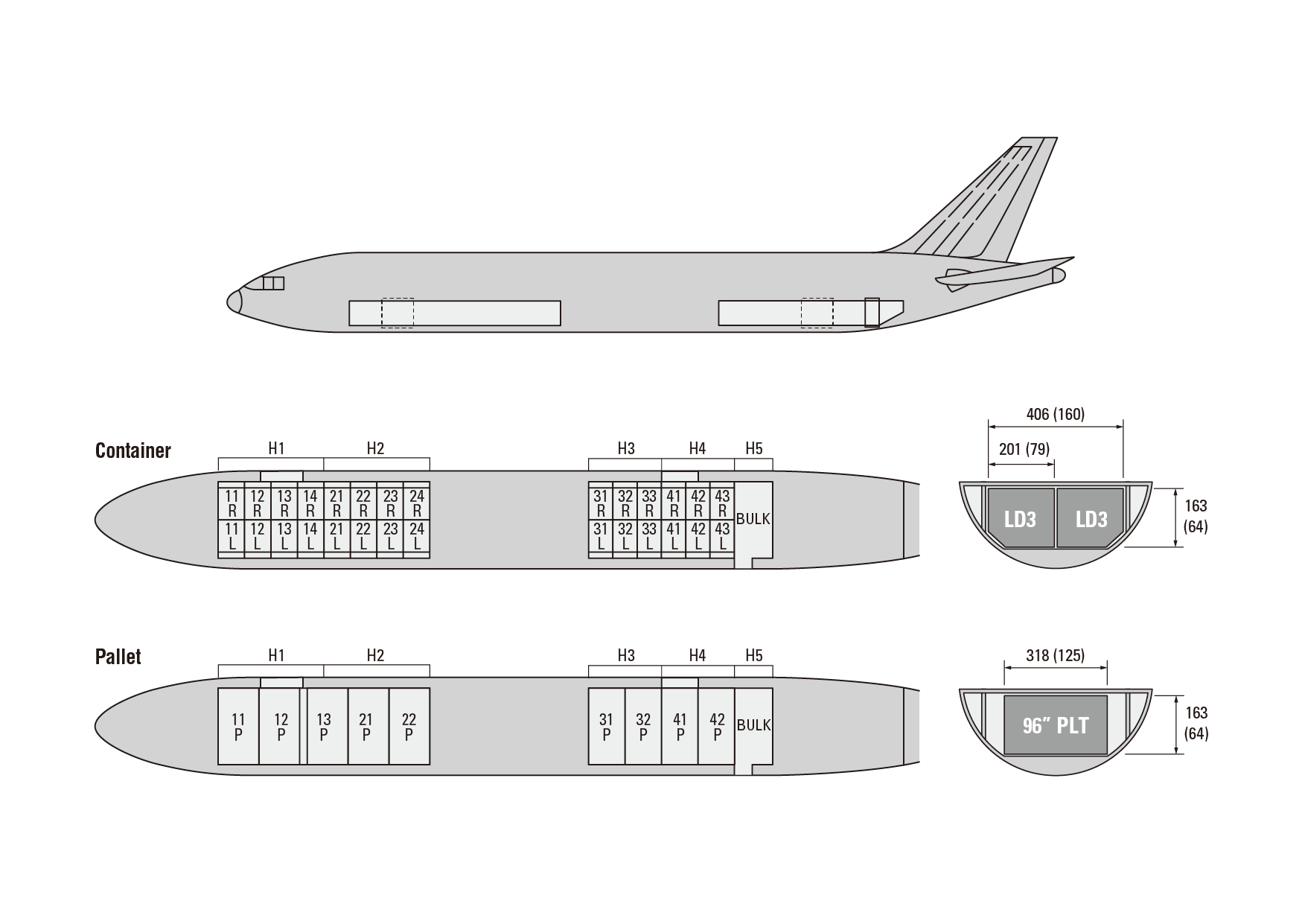

最大搭載ULD台数

Compartment ULD
FWD 16 Containers / 5 Pallets
AFT 12 Containers / 4 Pallets
TOTAL 28 Containers / 9 Pallets

重量制限

区分 最大搭載重量 最大面荷重
FWD 22,906kg (50,500lbs) 977kg/m² (200lbs/ft²)
AFT 18,534kg (40,860lbs) 977kg/m² (200lbs/ft²)
BULK 2,735kg (6,030lbs) 732kg/m² (150lbs/ft²)

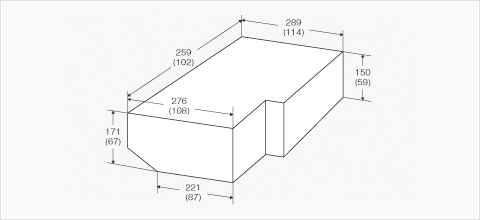

BULK仕様

バルク室 サイズ

[cm(inch)]

パッケージサイズ表(BULK)

[cm(inch)]

  Width
12
(5)
25
(10)
38
(15)
50
(20)
63
(25)
76
(30)
88
(35)
Length
Height 111
(45)
304
(120)
304
(120)
292
(115)
279
(110)
266
(105)
254
(100)
241
(95)
101
(40)
317
(125)
304
(120)
292
(115)
279
(110)
266
(105)
254
(100)
241
(95)
91
(36)
317
(125)
304
(120)
292
(115)
279
(110)
266
(105)
254
(100)
241
(95)
81
(32)
317
(125)
304
(120)
292
(115)
279
(110)
266
(105)
254
(100)
241
(95)
71
(28)
330
(130)
317
(125)
304
(120)
292
(115)
279
(110)
266
(105)
254
(100)
60
(24)
330
(130)
317
(125)
304
(120)
292
(115)
279
(110)
266
(105)
254
(100)
50
(20)
330
(130)
317
(125)
317
(125)
304
(120)
292
(115)
279
(110)
266
(105)
40
(16)
342
(135)
330
(130)
317
(125)
304
(120)
292
(115)
279
(110)
266
(105)
30
(12)
342
(135)
342
(135)
330
(130)
317
(125)
304
(120)
292
(115)
279
(110)
20
(8)
355
(140)
342
(135)
330
(130)
317
(125)
304
(120)
304
(120)
292
(115)
10
(4)
368
(145)
355
(140)
342
(135)
330
(130)
317
(125)
304
(120)
292
(115)
