B767-F

機体仕様

カーゴドアサイズ

[cm(inch)]

区分 サイズ 幅×高
GMF BCF
MAIN 340 x 262 (134 x 103)
FWD 340 x 170 (134 x 67)
AFT 340 x 170 (134 x 67) 178 x 175 (70 x 69)
BULK 97 x 114 (38 x 45)

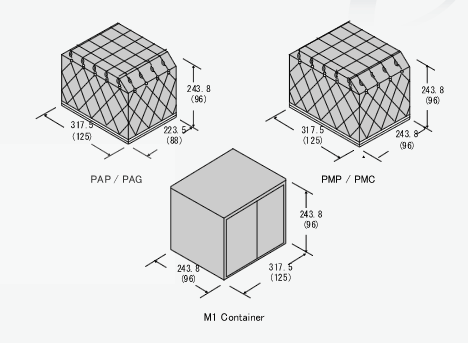

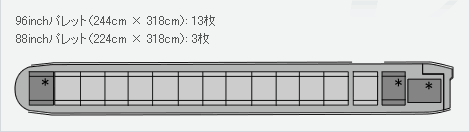

最大搭載ULD台数

Compartment ULD
MAIN 22 Pallets (Side by side ver)
FWD 8 Containers / 4 Pallets
AFT 7 Containers / 3 Pallets
TOTAL 15 Containers / 29 Pallets

重量制限

区分 最大搭載重量 最大面荷重
MAIN 26,000kg (45,400lbs) 1,221kg/m² (250lbs/ft²)
FWD 20,411kg (45,000lbs) 977kg/m² (200lbs/ft²)
AFT 17,758kg (39,150lbs) 977kg/m² (200lbs/ft²)
BULK 2,925kg (6,450lbs) 732kg/m² (150lbs/ft²)

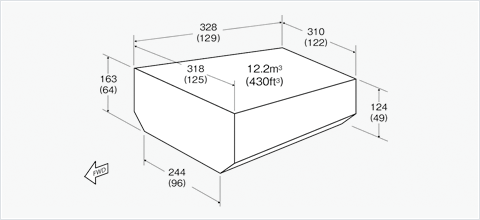

BULK仕様

バルク室 サイズ

[cm(inch)]

パッケージサイズ表(BULK)

[cm(inch)]

  Width
13
(5)
25
(10)
51
(20)
76
(30)
89
(35)
91
(36)
93
(36.6)
Length
Height 120
(47.2)
302
(119)
118
(46.6)
302
(119)
302
(119)
116
(45.5)
302
(119)
302
(119)
302
(119)
107
(42.0)
302
(119)
302
(119)
302
(119)
302
(119)
302
(119)
91
(35.7)
302
(119)
302
(119)
302
(119)
302
(119)
302
(119)
51
(20.0)
302
(119)
302
(119)
302
(119)
302
(119)
302
(119)
302
(119)
25
(10.0)
302
(119)
302
(119)
302
(119)
302
(119)
302
(119)
302
(119)
13
(5.0)
302
(119)
302
(119)
302
(119)
302
(119)
302
(119)
302
(119)
302
(119)
