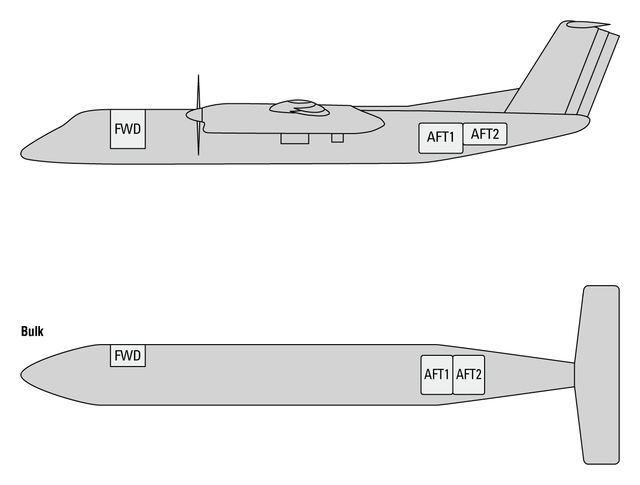

DHC8-400

機体仕様

貨物機仕様

カーゴドア寸法

部位 ドア寸法:幅×高さ
FWD 61×137 (24×54)
AFT 127×152 (50×60)

単位:cm(inch)

積載制限

貨物室 最大積載容量 最大積載重量 床面制限重量
FWD 2.6m3
(91ft3)
407kg
(904Lbs)
610kg/m2
(125Lbs/ft2)
AFT-1 6.4m3
(225ft3)
681kg
(1,500Lbs)
610kg/m2
(125Lbs/ft2)
AFT-2 3.9m3
(140ft3)
454kg
(1,000Lbs)
366kg/m2
(75Lbs/ft2)
合計(A1+A2) 10.3m3
(365ft3)
1,133kg
(2,500Lbs)

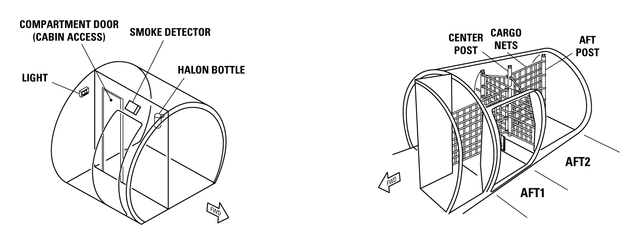

BULK仕様

仕様

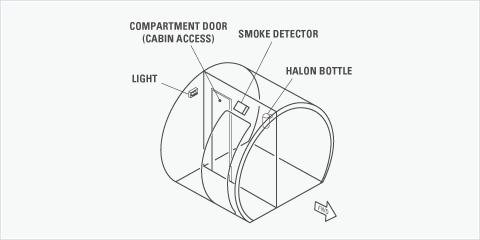

寸法(FWD)

パッケージサイズ(FWD)


  10
(4)
20
(8)
30
(12)
40
(16)
50
(20)
60
(24)
  奥行き
高さ 135
(56)
60
(24)
60
(24)
60
(24)
60
(24)
60
(24)
60
(24)
130
(52)
60
(24)
60
(24)
60
(24)
60
(24)
60
(24)
60
(24)
120
(48)
60
(24)
60
(24)
60
(24)
60
(24)
60
(24)
60
(24)
110
(44)
72
(29)
67
(27)
61
(24)
60
(24)
60
(24)
60
(24)
100
(40)
86
(34)
81
(32)
75
(30)
68
(27)
60
(24)
60
(24)
90
(36)
99
(39)
94
(37)
88
(35)
81
(32)
73
(29)
60
(24)
80
(32)
111
(44)
106
(42)
100
(40)
93
(37)
85
(34)
76
(30)
70
(28)
122
(48)
117
(46)
111
(44)
104
(41)
96
(38)
87
(35)
60
(24)
132
(52)
127
(50)
121
(48)
114
(45)
106
(42)
97
(39)
50
(20)
141
(56)
136
(54)
130
(52)
123
(49)
115
(46)
106
(42)
40
(16)
149
(59)
144
(57)
138
(55)
131
(52)
123
(49)
114
(45)
30
(12)
156
(62)
151
(60)
145
(58)
138
(55)
130
(52)
121
(48)
20
(8)
162
(64)
157
(62)
151
(60)
144
(57)
136
(54)
127
(50)
10
(4)
167
(66)
162
(64)
156
(62)
149
(59)
141
(56)
132
(52)

単位:cm(inch)

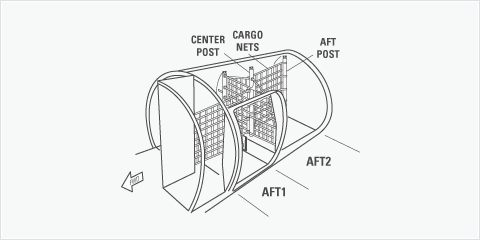

寸法(AFT)

パッケージサイズ(AFT-1)


  10
(4)
20
(8)
30
(12)
40
(16)
50
(20)
60
(24)
70
(28)
80
(32)
90
(36)
100
(40)
110
(44)
118
(47)
  奥行き
高さ 138
(55)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
130
(52)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
120
(48)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
110
(44)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
100
(40)
131
(52)
126
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
90
(36)
144
(57)
139
(55)
131
(52)
126
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
80
(32)
156
(62)
151
(60)
145
(58)
138
(55)
136
(52)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
70
(28)
167
(66)
162
(64)
156
(62)
149
(59)
141
(56)
132
(52)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
60
(24)
177
(70)
172
(68)
166
(66)
159
(63)
151
(60)
142
(56)
132
(52)
125
(50)
125
(50)
125
(50)
125
(50)
125
(50)
50
(20)
186
(74)
181
(72)
175
(69)
168
(67)
160
(63)
151
(60)
141
(56)
130
(52)
125
(50)
125
(50)
125
(50)
125
(50)
40
(16)
194
(77)
189
(75)
183
(72)
176
(70)
168
(67)
159
(63)
149
(59)
138
(55)
126
(50)
125
(50)
125
(50)
125
(50)
30
(12)
201
(80)
196
(78)
190
(75)
183
(72)
175
(69)
166
(66)
156
(62)
145
(58)
131
(52)
125
(50)
125
(50)
125
(50)
20
(8)
207
(82)
202
(80)
196
(78)
189
(75)
181
(72)
172
(68)
162
(64)
151
(60)
139
(55)
126
(50)
125
(50)
125
(50)
10
(4)
212
(84)
207
(82)
201
(80)
194
(77)
186
(74)
177
(70)
167
(66)
156
(62)
144
(57)
131
(52)
125
(50)
125
(50)

単位:cm(inch)

パッケージサイズ(AFT-2)


  10
(4)
20
(8)
30
(12)
40
(16)
50
(20)
60
(24)
  奥行き
高さ 110
(44)
120
(48)
120
(48)
120
(48)
120
(48)
120
(48)
120
(48)
100
(40)
120
(48)
120
(48)
120
(48)
120
(48)
120
(48)
120
(48)
90
(36)
124
(49)
120
(48)
120
(48)
120
(48)
120
(48)
120
(48)
80
(32)
132
(52)
124
(49)
120
(48)
120
(48)
120
(48)
120
(48)
70
(28)
140
(56)
132
(52)
124
(49)
120
(48)
120
(48)
120
(48)
60
(24)
148
(59)
140
(56)
132
(52)
124
(49)
120
(48)
120
(48)
50
(20)
156
(62)
148
(59)
140
(56)
132
(52)
124
(49)
120
(48)
40
(16)
164
(65)
156
(62)
148
(59)
140
(56)
132
(52)
124
(49)
30
(12)
172
(68)
164
(65)
156
(62)
148
(59)
140
(56)
132
(52)
20
(8)
180
(71)
172
(68)
164
(65)
156
(62)
148
(59)
140
(56)
10
(4)
188
(74)
180
(71)
172
(68)
164
(65)
156
(62)
148
(59)

単位:cm(inch)
