B777-300

機体仕様

カーゴドアサイズ

[cm(inch)]

区分 サイズ 幅x高
300 300ER
FWD 269 x 170 (106 x 67)
AFT 178 x 170 (70 x 67) 269 x 170 (106 x 67)
BULK 91 x 114 (36 x 45)

最大搭載ULD台数

Compartment ULD
300 300ER
FWD 24 Containers / 8 Pallets
AFT 20 Containers 20 Containers / 6 Pallets
TOTAL 44 Containers / 8 Pallets 44 Containers / 14 Pallets

重量制限

区分 最大搭載重量 最大面荷重
FWD 30,617kg (67,500lbs) 977kg/m² (200lbs/ft²)
AFT 22,226kg (49,000lbs) 977kg/m² (200lbs/ft²)
BULK 4,082kg (9,000lbs) 732kg/m² (150lbs/ft²)

BULK仕様

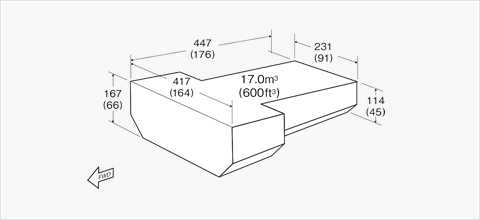

バルク室 サイズ

[cm(inch)]

パッケージサイズ表 (BULK)

[cm(inch)]

  Width
12
(5)
25
(10)
38
(15)
50
(20)
63
(25)
84
(33.2)
Length
Height 101
(40)
429
(169)
429
(169)
391
(154)
360
(142)
337
(133)
312
(123)
91
(36)
429
(169)
429
(169)
408
(161)
373
(147)
347
(137)
325
(128)
81
(32)
429
(169)
429
(169)
429
(169)
391
(154)
363
(143)
337
(133)
71
(28)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
60
(24)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
50
(20)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
40
(16)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
30
(12)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
20
(8)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
10
(4)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
