B777-200

機体仕様

カーゴドアサイズ

[cm(inch)]

区分 サイズ 幅x高
200 200ER
FWD 269 x 170 (106 x 67)
AFT DOM 178 x 170 (70 x 67) 269 x 170 (106 x 67)
INT 269 x 170 (106 x 67) 178 x 170 (70 x 67)
BULK 91 x 114 (36 x 45)

最大搭載ULD台数

Compartment ULD
200 200ER
FWD 18 Containers / 6 Pallets
AFT DOM 14 Containers 10 Containers
INT 14 Containers / 4 Pallets 10 Containers / 3 Pallets
TOTAL DOM 32 Containers 28 Containers
INT 32 Containers / 10 Pallets 28 Containers / 9 Pallets

重量制限

区分 最大搭載重量 最大面荷重
FWD 30,617kg (67,500lbs) 977kg/m² (200lbs/ft²)
AFT 22,226kg (49,000lbs) 977kg/m² (200lbs/ft²)
BULK 4,082kg (9,000lbs) 732kg/m² (150lbs/ft²)

BULK仕様

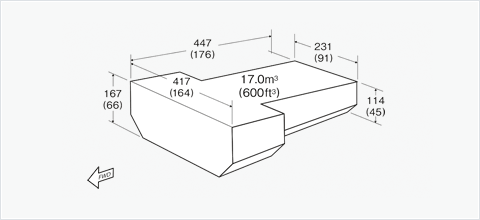

バルク室 サイズ

[cm(inch)]

パッケージサイズ表 (BULK)

[cm(inch)]

  Width
12
(5)
25
(10)
38
(15)
50
(20)
63
(25)
84
(33.2)
Length
Height 101
(40)
429
(169)
429
(169)
391
(154)
360
(142)
337
(133)
312
(123)
91
(36)
429
(169)
429
(169)
408
(161)
373
(147)
347
(137)
325
(128)
81
(32)
429
(169)
429
(169)
429
(169)
391
(154)
363
(143)
337
(133)
71
(28)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
60
(24)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
50
(20)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
40
(16)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
30
(12)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
20
(8)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
10
(4)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
