Pallet

※Contour and weight limitation would be changed depend on the loading position on aircraft

PLA

Illustration(Internal Dimension)

Specification

External Dimension/L×W×H:
cm(inch)
318×153×163 (125×60.4×64)
Tare Wt:kg(Lbs) 100 (220)
Loadable Aircraft B777 B787 A380
Weight Lim Inc ULD Tare Wt:
kg(Lbs)
2,449 (5,400) 3,175 (7,000) 3,174 (7,000)

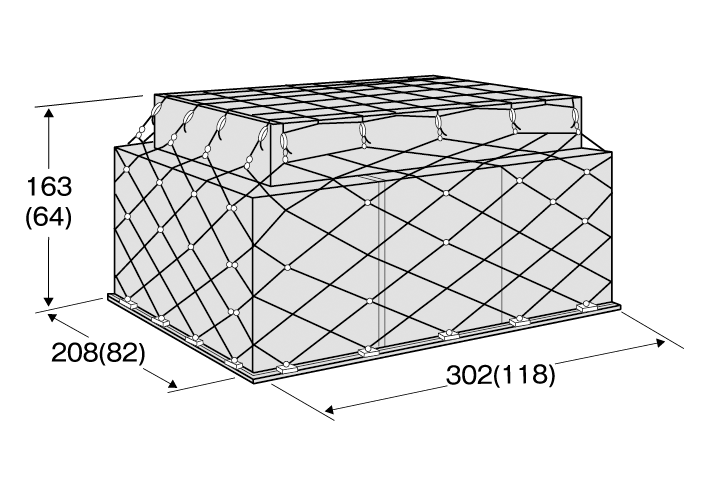

PAG/PAJ

Illustration(Internal Dimension)

Specification

External Dimension/L×W×H:
cm(inch)
318×224×163 (125×88×64)
Tare Wt:kg(Lbs) 100 (220)
Loadable Aircraft B777 B787 A380 B767ER B767F B777F
Weight Lim Inc ULD Tare Wt:
kg(Lbs)
4,676 (10,310) 4,626 (10,200) 5,102 (11,250) MAIN: 1,950(4,300)~ 6,803(15,000) LOWER: 5,102(11,250)~ 6,032(13,300) MAIN: 3,233(7,128)~ 6,803(15,000) LOWER: 4,676 (10,310)

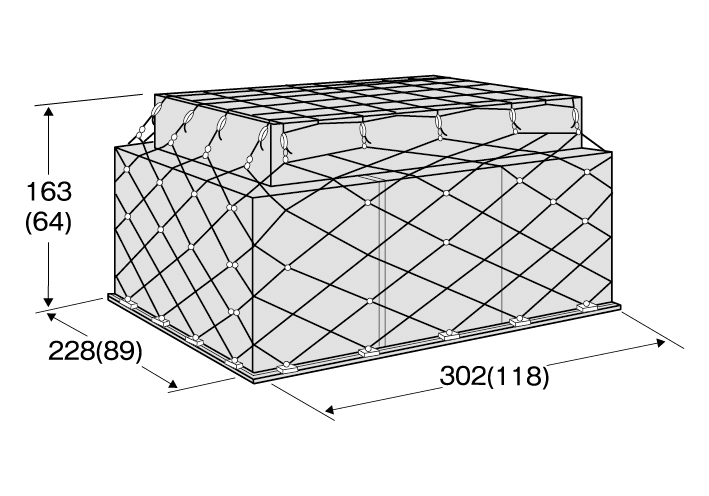

PMC

Illustration(Internal Dimension)

Specification

External Dimension/L×W×H:
cm(inch)
318×244×163 (125×96×64)
Tare Wt:kg(Lbs) 110 (242)
Loadable Aircraft B777 B787 B767ER A380 B767F B777F
Weight Lim Inc ULD Tare Wt:
kg(Lbs)
5,102 (11,250) 5,103 (11,250) MAIN: 3,394(7,483)~ 6,803(15,000) LOWER: 5,102(11,250)~ 6,803(15,000) MAIN: 3,527(7,775)~ 6,803(15,000) LOWER: 5,102(11,250)

PRA

Illustration(Internal Dimension)

Specification

External Dimension/L×W×H:
cm(inch)
498×244×244 (196×96×96)
Tare Wt:kg(Lbs) 469 (1,034)
Loadable Aircraft B767F B777F
Weight Lim Inc ULD Tare Wt:
kg(Lbs)
MAIN: 6,803(15,000)~ 10,437(23,010) MAIN: 6,401(14,112)~ 11,339(25,000)

PGA

Illustration(Internal Dimension)

Specification

External Dimension/L×W×H:
cm(inch)
606×244×299 (239×96×118)
Tare Wt:kg(Lbs) 500 (1,100)
Loadable Aircraft B777F
Weight Lim Inc ULD Tare Wt:
kg(Lbs)
7,788(17,170) ~ 11,339 (25,000)
