A380

Aircraft Information

Cargo Door Dimension

[cm(inch)]

Compartment Door Dimension Width x Height
FWD 311 x 175 (122 x 68)
AFT 279 x 175 (109 x 68)
BULK 113 x 99 (44 x 38)

Maximum Number of ULD

Compartment ULD
FWD 16 Containers / 5 Pallets
AFT 16 Containers / 6 Pallets
TOTAL 32 Containers / 11 Pallets

Weight Limitation

Compartment Maximum Weight of Loading Floor Limitation
FWD 36,967kg (81,500lbs) 659kg/m² (135lbs/ft²)
AFT 30,617kg (67,500lbs) 659kg/m² (135lbs/ft²)
BULK 2,735kg (6,030lbs) 732kg/m² (150lbs/ft²)

BULK

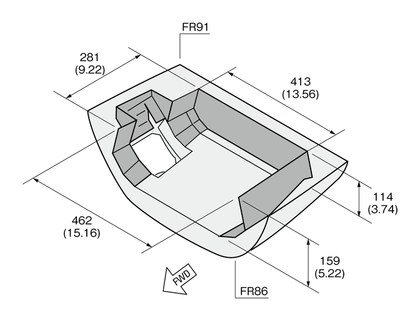

Bulk Dimension

[cm(inch)]

Package Size Table(BULK)

[cm(inch)]

Section 52

  Width
10
(3)
15
(5)
20
(7)
25
(9)
30
(11)
35
(13)
40
(15)
45
(17)
50
(19)
55
(21)
60
(23)
65
(25)
Length
Height up to 60
(23)
294
(115)
289
(113)
284
(112)
280
(110)
275
(108)
271
(106)
266
(105)
262
(103)
258
(101)
254
(100)
250
(98)
247
(97)

Section 53

  Width
10
(3)
15
(5)
20
(7)
25
(9)
30
(11)
35
(13)
40
(15)
45
(17)
50
(19)
55
(21)
60
(23)
Length
Height up to 60
(23)
320
(126)
319
(125)
318
(125)
318
(125)
318
(125)
318
(125)
318
(125)
318
(125)
318
(125)
318
(125)
318
(125)
