A320/321
机体规格
货舱门尺寸
[cm(inch)]
| 货舱 | 尺寸 宽x高 |
|---|---|
| 前舱(FWD) | 182 x 119 (71.5 x 46.9) |
| 后舱(AFT) | 182 x 119 (71.5 x 46.9) |
| 散仓(BULK) | 95 x 77 (37.6 x 30) |
最大搭载集装器个数
| 货舱 | 集装器(ULD) | |
|---|---|---|
| 320 | 321 | |
| 前舱(FWD) | 3 Containers | 5 Containers |
| 后舱(AFT) | 4 Containers | 5 Containers |
| 总数 | 7 Containers | 10 Containers |
重量限制
| 货舱 | 最大搭载重量 | 单位面积最大承重 | |
|---|---|---|---|
| 320 | 321 | ||
| 前舱(FWD) | 3,402kg (7,500lbs) | 5,670kg (12,500lbs) | 488kg/m² (100lbs/ft²) |
| 后舱(AFT) | 4,536kg (10,000lbs) | 5,670kg (12,500lbs) | 488kg/m² (100lbs/ft²) |
| 散仓(BULK) | 1,497kg (3,300lbs) | 1,497kg (3,300lbs) | 732kg/m² (150lbs/ft²) |
* 此处所示为每个货舱的最大搭载重量，不是每架飞机的最大搭载重量。
* 每架飞机的最大搭载重量因航线、天气等而异，具体详情请垂询我司销售人员。
BULK规格

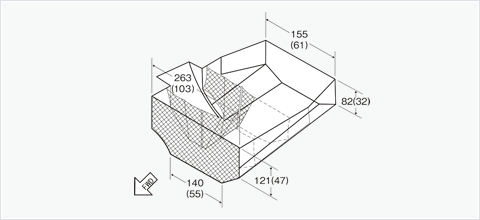

散仓 尺寸
[cm(inch)]
货物尺寸表（散仓(BULK)）
[cm(inch)]
| Width | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 10 (3.9) |
20 (7.8) |
30 (11.8) |
40 (15.7) |
50 (19.6) |
60 (23.6) |
70 (27.5) |
80 (31.4) |
85 (33.4) |
||
| Length | ||||||||||
| Height | 10 (3.9) |
323 (127.0) |
323 (127.0) |
320 (126.0) |
318 (125.1) |
316 (124.4) |
310 (122.0) |
303 (119.2) |
277 (109.0) |
268 (105.5) |
| 20 (7.8) |
323 (127.0) |
323 (127.0) |
320 (126.0) |
318 (125.1) |
315 (124.0) |
307 (120.8) |
296 (116.5) |
273 (107.4) |
265 (104.3) |
|
| 30 (11.8) |
323 (127.0) |
321 (126.0) |
317 (124.8) |
314 (123.6) |
304 (119.6) |
295 (116.1) |
278 (109.4) |
260 (102.3) |
254 (100.0) |
|
| 40 (15.7) |
319 (125.6) |
315 (124.2) |
311 (122.4) |
301 (118.5) |
290 (114.1) |
282 (111.0) |
262 (103.1) |
248 (97.6) |
243 (95.6) |
|
| 50 (19.6) |
311 (122.4) |
309 (121.6) |
291 (114.5) |
281 (110.6) |
271 (106.6) |
257 (101.1) |
242 (95.2) |
231 (90.9) |
228 (89.7) |
|
| 60 (23.6) |
290 (114.1) |
273 (107.4) |
259 (101.9) |
247 (97.2) |
234 (92.1) |
224 (88.1) |
217 (85.4) |
211 (83.0) |
208 (80.8) |
|
| 65 (25.5) |
270 (106.2) |
257 (101.1) |
241 (94.8) |
229 (90.1) |
217 (85.4) |
208 (81.8) |
202 (79.5) |
198 (77.9) |
193 (75.9) |
|
