Freighter Service Guide
Our new Boeing 777 freighters will
support future air logistics and connect the world

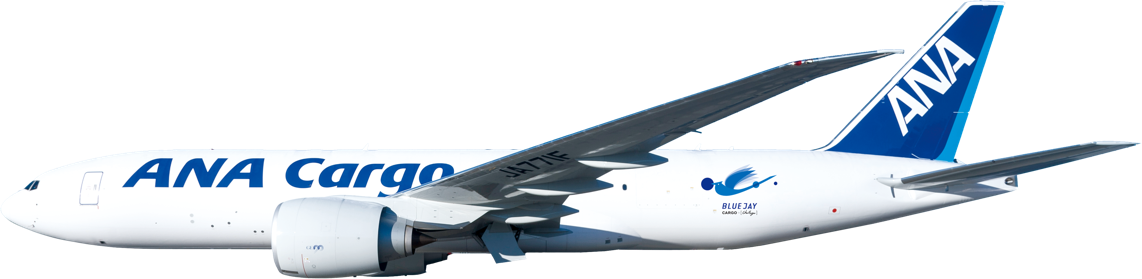

Our Boeing 777 freighters (nickname: ”BLUE JAY”) can hold 102tons of cargo, approximately twice as much as Boeing 767 freighters. They provide an optimal solution for the additional expansion in cargo volumes caused by economic growth in developing countries, as well as for the advanced supply chain of the global era.
NEW BOEING 777 FREIGHTERS
The aircraft can handle large cargo that used to be difficult to transport due to its size or other constraints. It’s now possible to transport semiconductor manufacturing equipment and machine tools.
- BOEING 777 FREIGHTER
- BOEING 767 FREIGHTER
BOEING 777 FREIGHTER
This large freighter has a cruising range of 9,200 km and load capacity of approximately 100 tons.
Speedily transports various shipments,including special cargo, via Asia = North America network.
FREIGHTER
Suitable for following cargos
- Heavy shipments (Aircraft engine, semiconductor manufacturing equipment, completed car, etc.)
- Lengthy shipments (MRI equipment, Gas turbine, etc.)
- Other special shaped shipments (Race horse, etc.)
Semiconductor manufacturing equipment
MRI equipment
SUV vehicle
Race horse

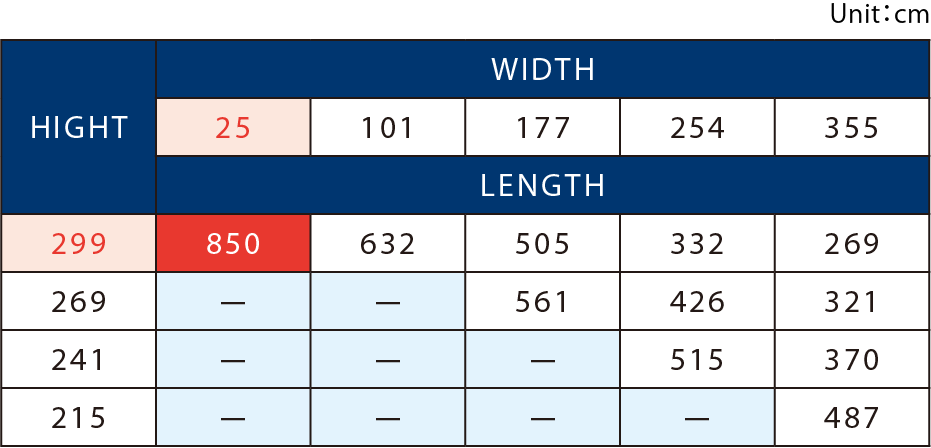

LENGTH Loadable length
Transportation of special cargo with sizes unloadable on passenger aircraft or mid-sized freighter can be realized with large freighter’s space only.
※Maximum loadable length varies depending on cargo shape,weight & airport conditions

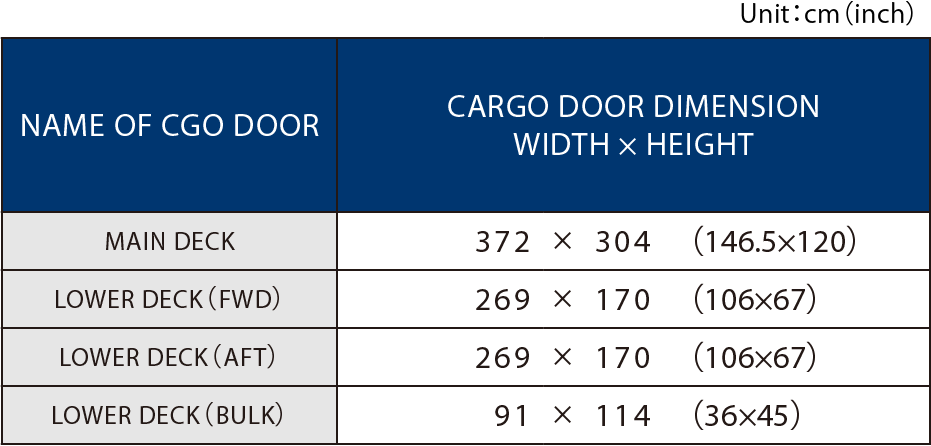

WIDTH × HEIGHTCargo door dimensions
Cargo door height is 3.04m. Tall shipments, such as large manufacturing equipment, is loadable.
WEIGHTLoadable weight

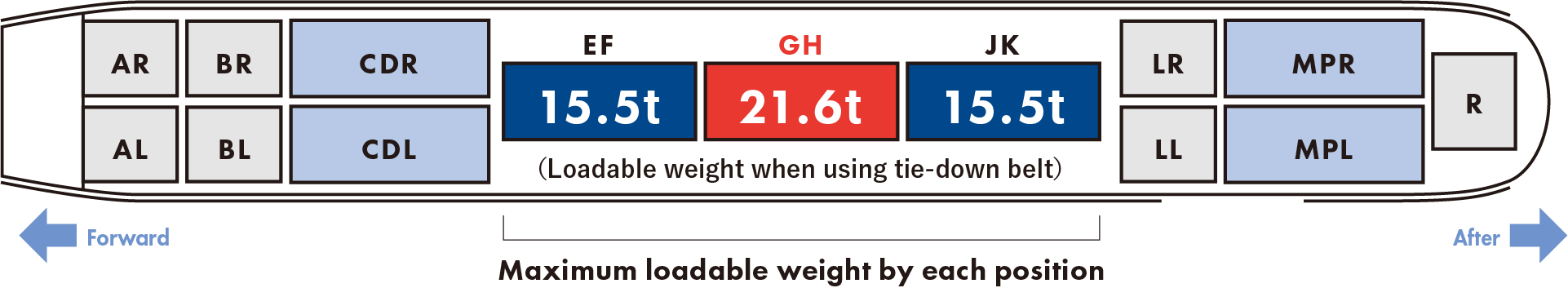

Boeing 777 freighter, with total loadable weight capacity of 100 tons, can accommodate maximum 21.6 tons heavy cargo by using “Heavy Duty Pallet”.

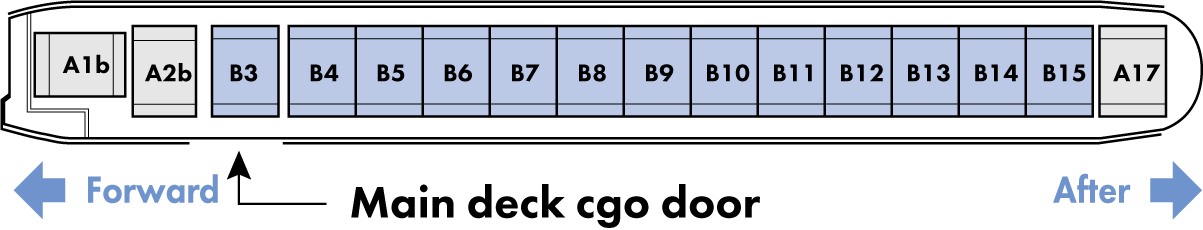

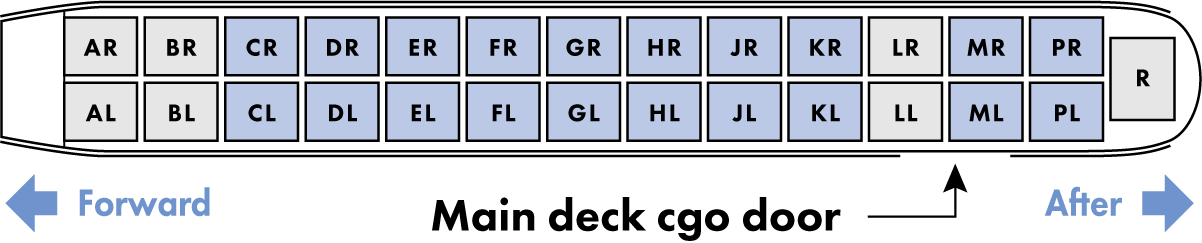

MAIN DECK（PALLET: 27） Commonly-used configuration

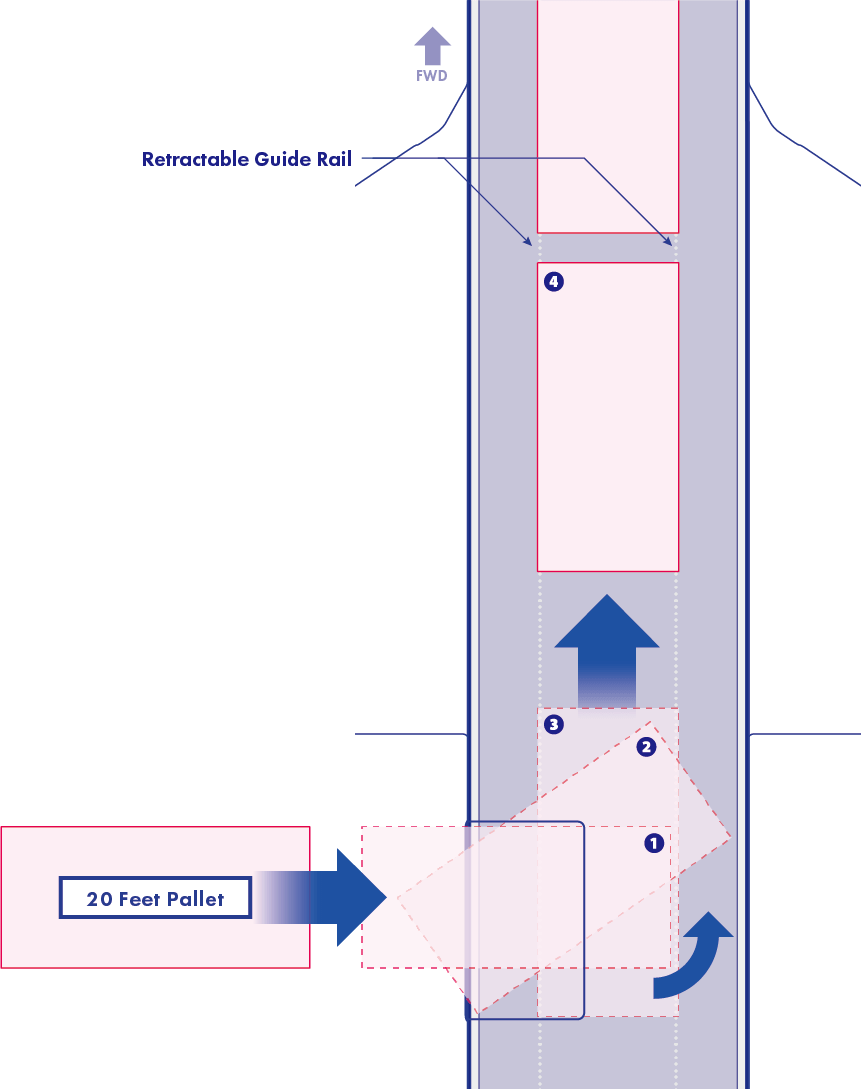

Main Deck Configuration for Heavy & Oversized Cargo

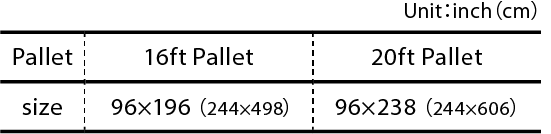

（Using 16Ft Pallet & 20Ft Pallet）

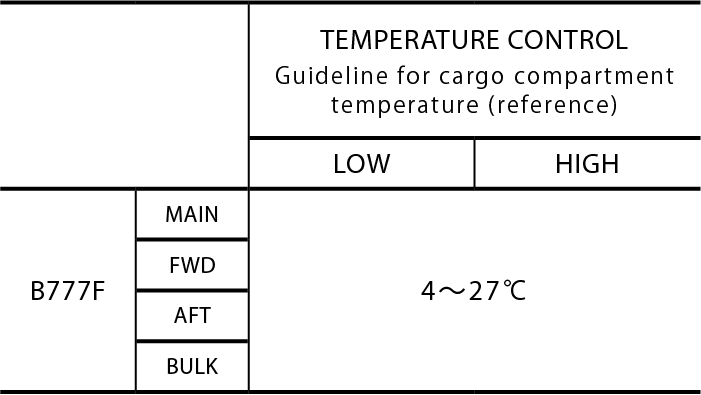

Inner-aircraft temperature environment
Whole cargo compartment can be temperature controlled between 4~27°C.Suitable for transportation of animals or temperature control required shipments.
BOEING 777-200 FREIGHTER
- LENGTH
- 63.7 m
- HEIGHT
- 18.6 m
- WING SPAN
- 64.8 m
- MAXIMUM RANGE
- 9,204 km
- MAXIMUM SPEED
- Mach 0.9
- PAYLOAD CAPACITY
- 102,010 kg

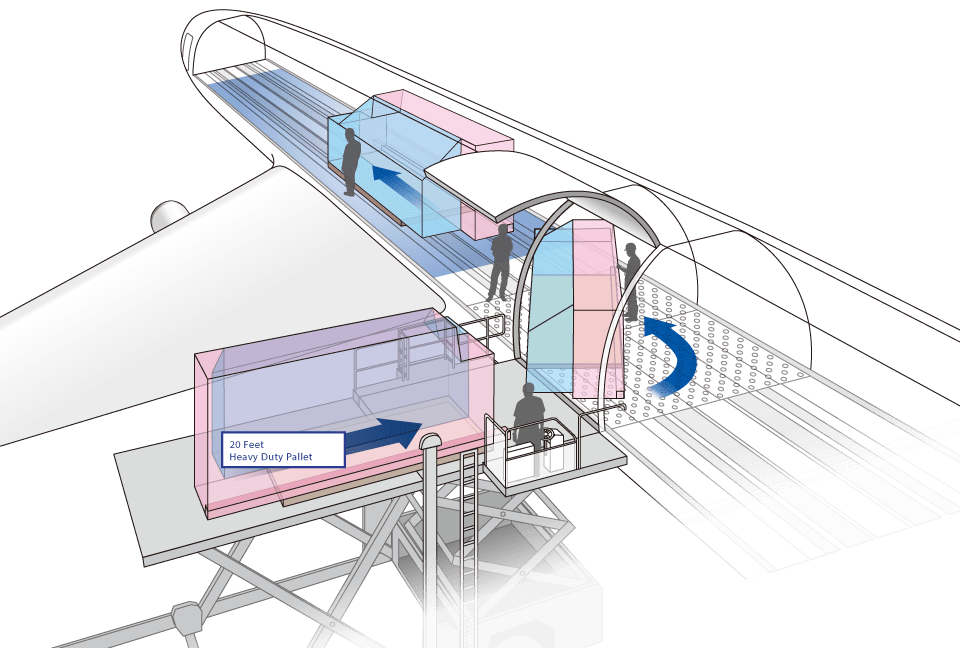

LOADING
Loading of tall height or large special shipments can be realized with large freighter’s cargo space.
By using “Heavy Duty Pallet”, shipment up to total weight of 21.6 tons can be loaded.
Heavy cargo is transported in stable condition by fixing on the aircraft’s highest strength “GH” position.

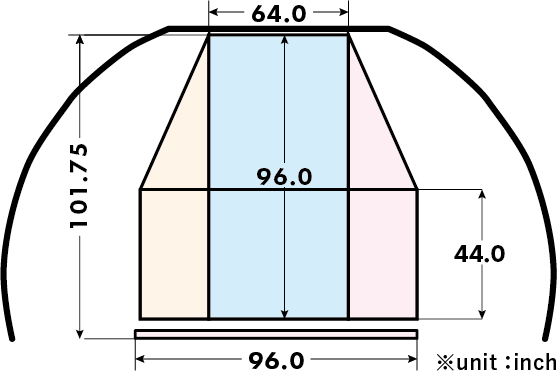

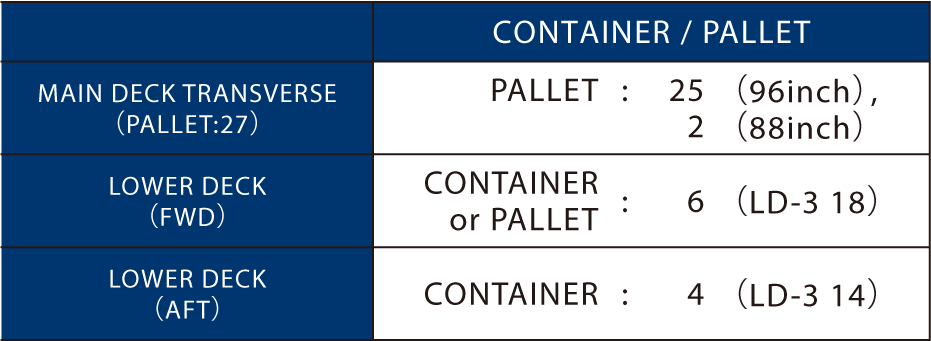

MAXIMUM LOADING NUMBER OF ULD

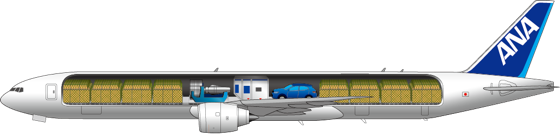

BOEING 767 FREIGHTER
This freighter has a cruising range of 6,000 km and load capacity of approximately 50 tons.
Efficiently transports cargo via intra-Asian network.
FREIGHTER
Suitable for following cargos
- Heavy shipments (Metal components coil, Completed car, Large industrial products, etc.)
- Lengthy shipments (Art work, Metal components pipe, etc.)
- Other special shaped shipments
completed car
Art work
Metal components coil
Metal components pipe

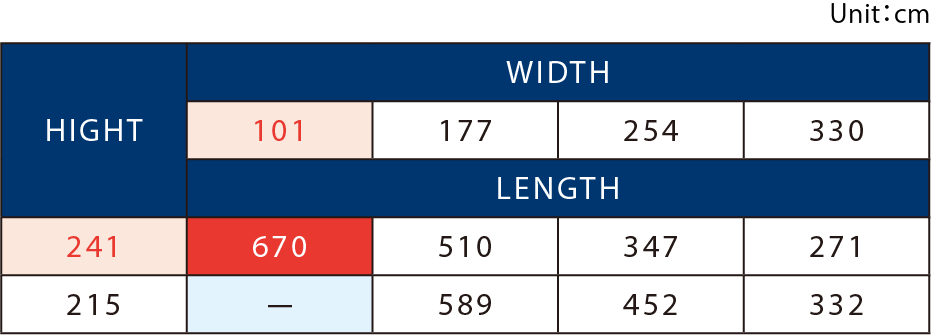

LENGTH Loadable length
Transportation of cargos meeting the needs of special shaped shipments, etc. unloadable on passenger aircraft can be flexibly accommodated on Boeing 767 freighter’s large space capacity.
※Maximum loadable length varies depending on cargo shape,weight & airport conditions

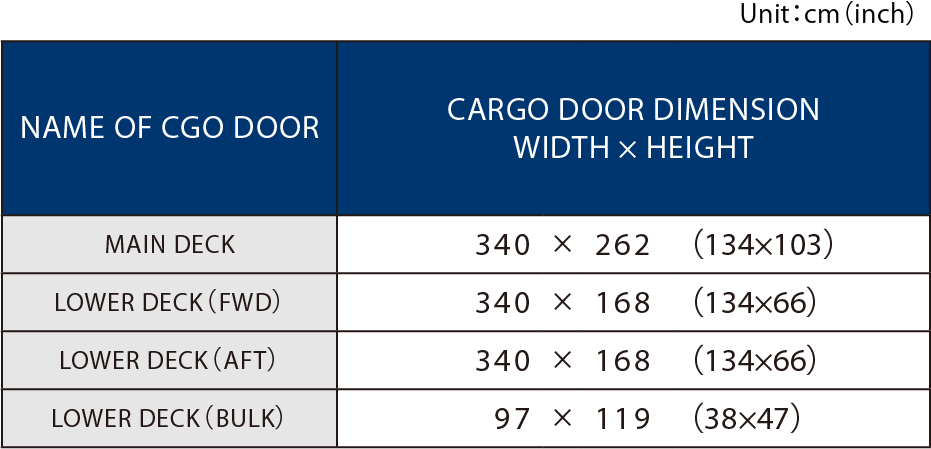

WIDTH × HEIGHTCargo door dimensions
The height of the cargo door is 2.62 meters. Tall size cargo can be transported.
WEIGHTLoadable weight

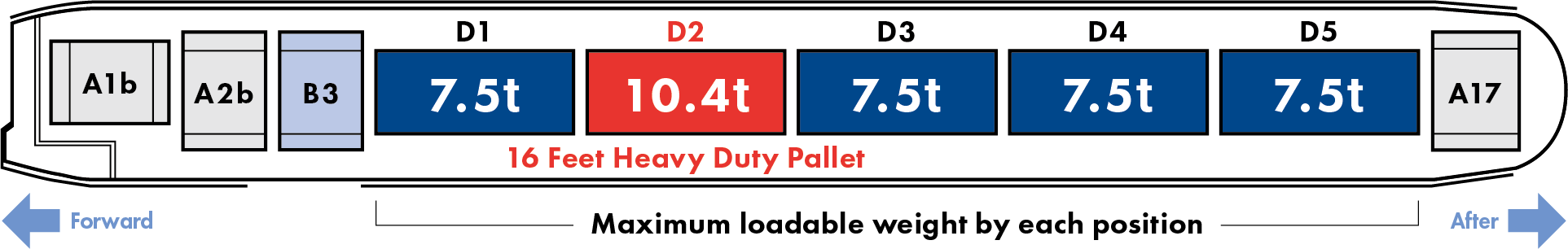

Boeing 767 freighter, with total loadable weight capacity of 64 tons, can accommodate maximum 10.4 tons heavy cargo by using “Heavy Duty Pallet”.(Limited to D2 position only)
MAIN DECK（PALLET: 16） Commonly-used configuration

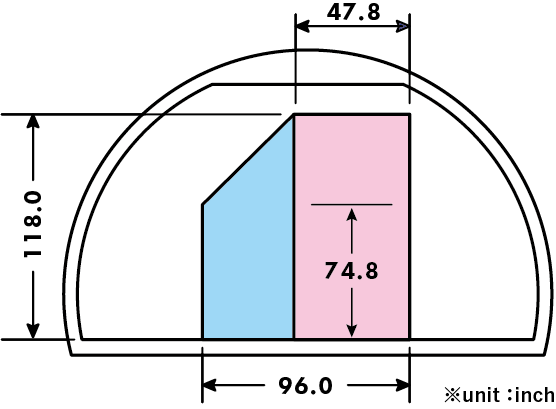

BCF Main Deck Configuration for Heavy & Oversized Cargo

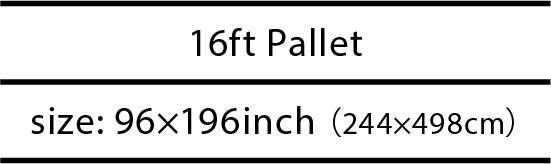

（Using 16Ft Pallet）

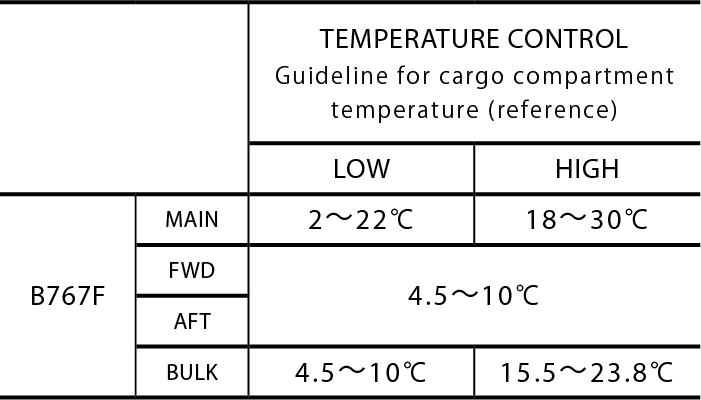

Inner-aircraft temperature environment
Possible to preset different temperatures by load position, meeting various needs.
BOEING 767-300 FREIGHTER
- LENGTH
- 54.9 m
- HEIGHT
- 15.9 m
- WING SPAN
- 47.6 m
- MAXIMUM RANGE
- 6,028 km
- MAXIMUM SPEED
- Mach 0.8
- PAYLOAD CAPACITY
- 51,660 kg

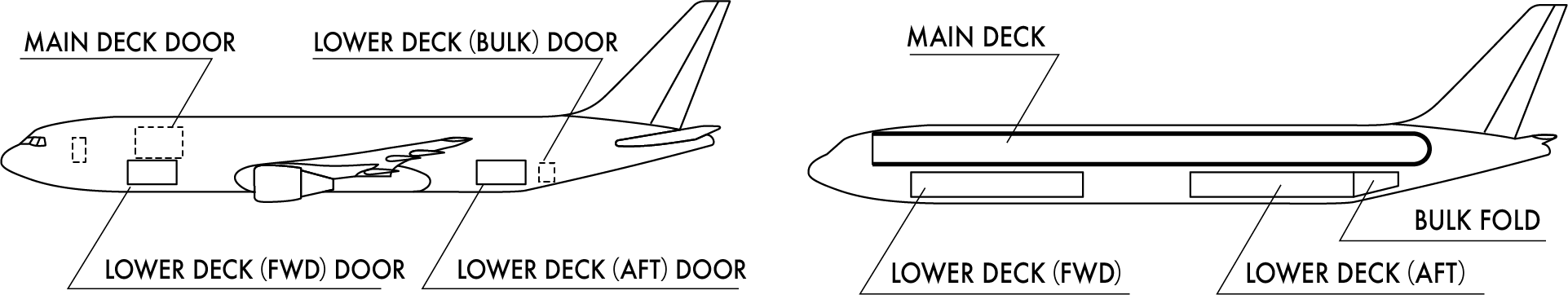

LOADING
Transportation of large cargos, unloadable on passenger aircraft, can be flexibly accommodated.

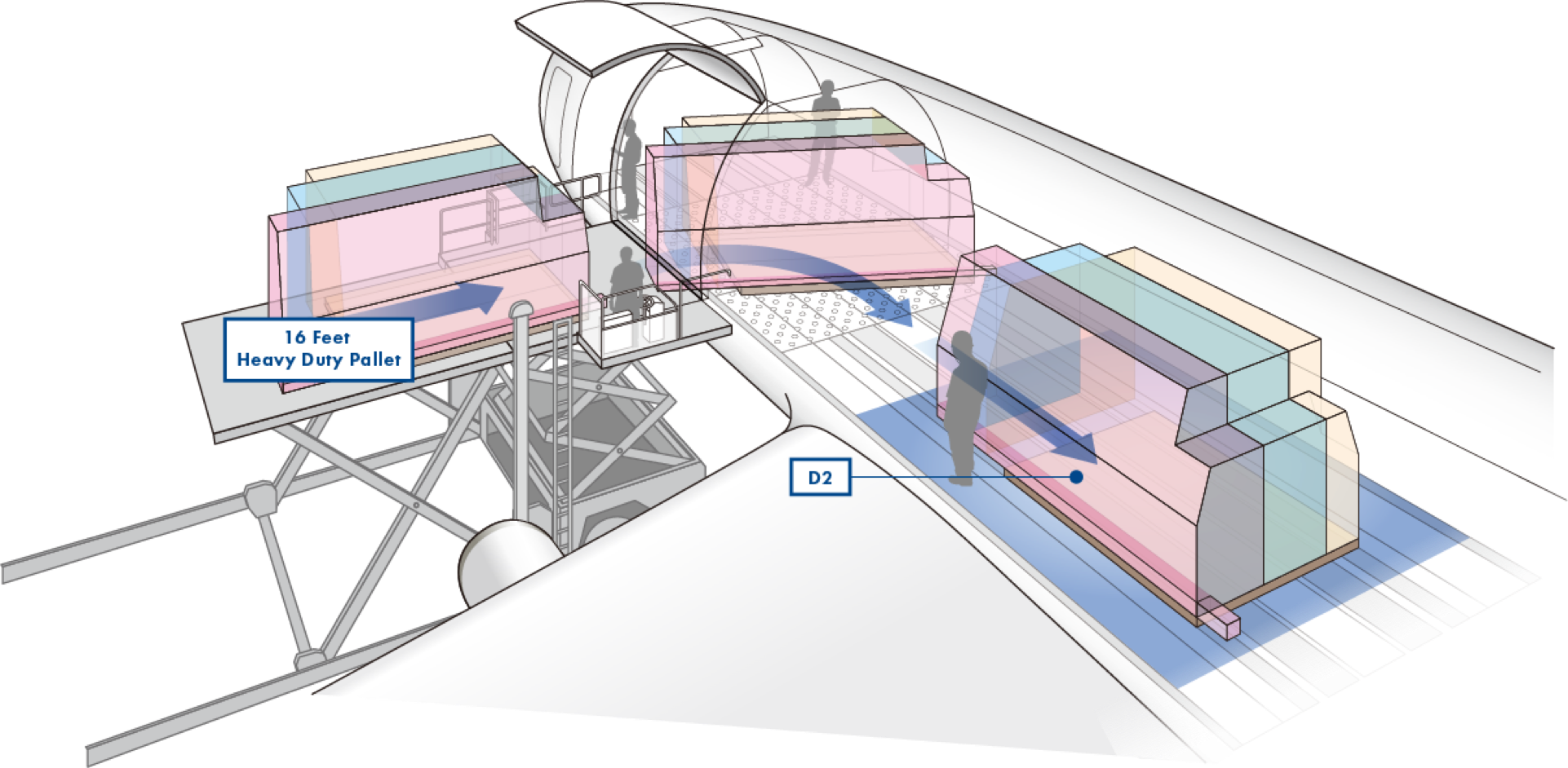

Shipment up to total weight of 10.4 tons is possible to be transported in stable condition by fixing on the aircraft’s highest strength “D2” main wing position.

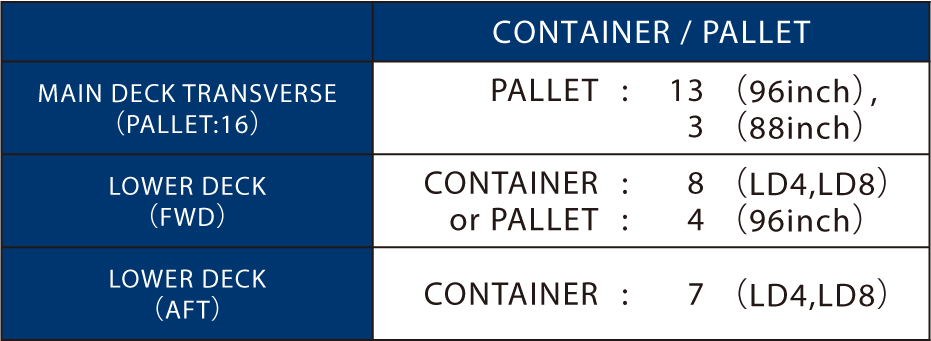

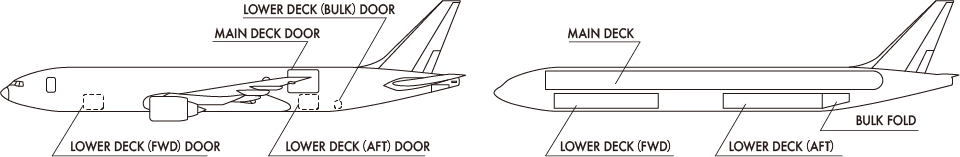

MAXIMUM LOADING NUMBER OF ULD
※Boeing 767-300 BCF freighter cannot load pallets on the AFT LOWER DECK
